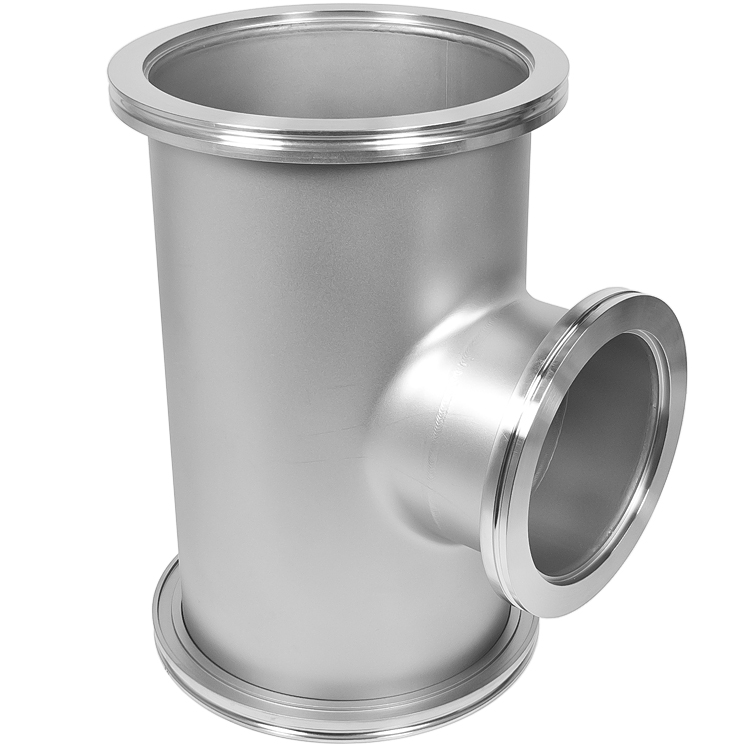

Adaptive Reducing TEE ISO-160 to NW-100, ISO MF Interface, LF160 to LF100, Stainless Steel

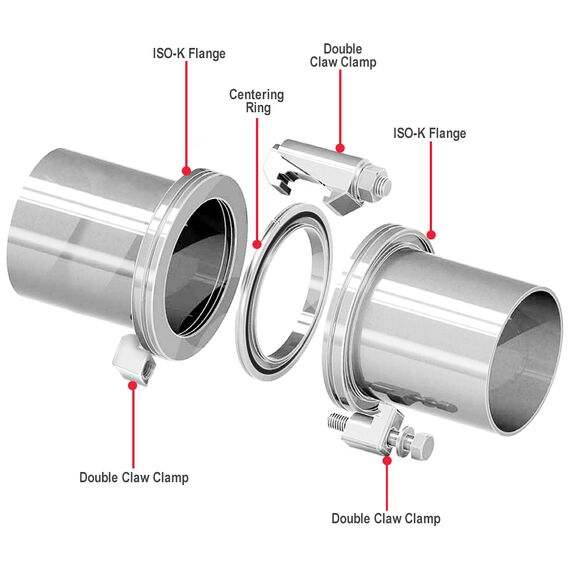

These ISO 160 to ISO 100 Adaptive Reducer TEE vacuum fittings follow ISO-LF and NW standards and have a flange size of LF160 to LF100. They are commonly used to build vacuum plumbing and process systems. All flange sizes are LF ISO NW on this TEE. (please see top far right figure for connection instructions - click to enlarge). They are made of corrosive resistant 304 stainless steel.
Reducer TEE ISO 160 to ISO 100
ISO-NW Flange Cross Size: LF-160 to LF-100

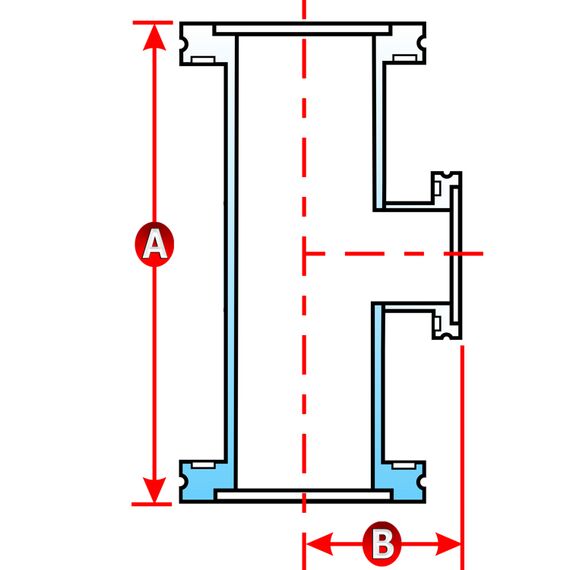

Common Dimensions: A= 10.50"(267mm), B= 5.125"(130mm)
