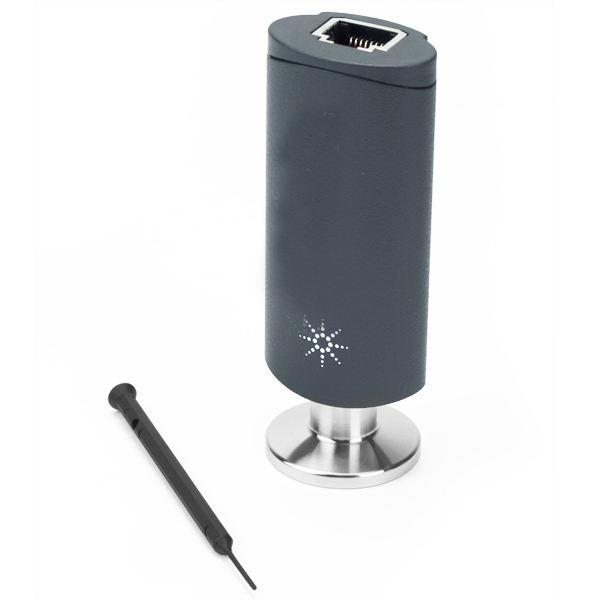

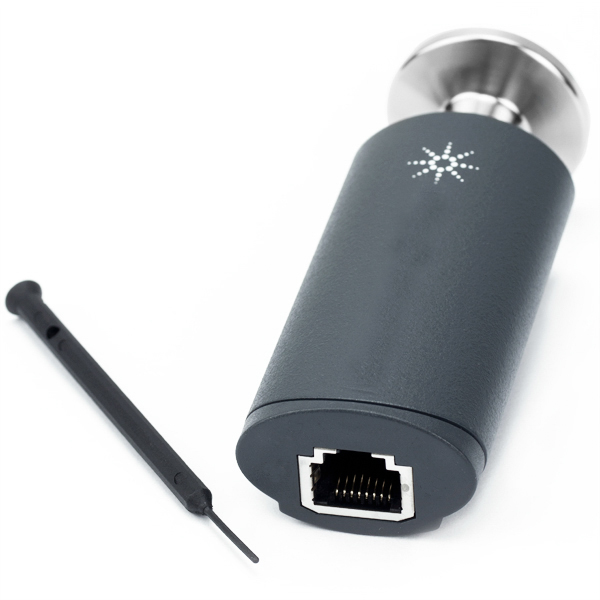

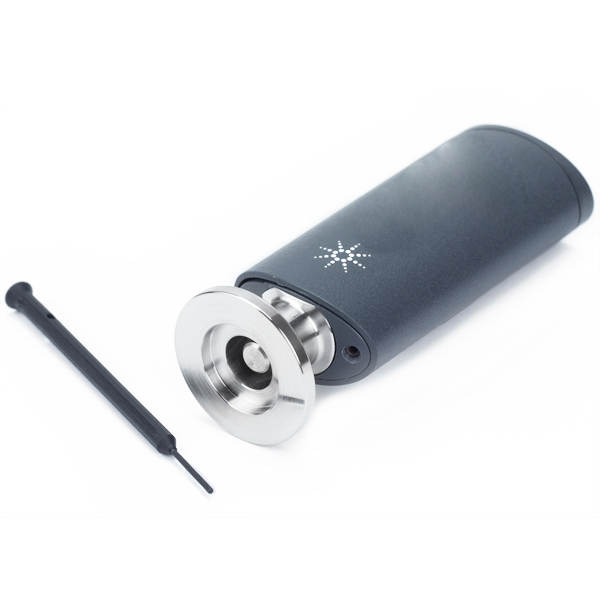

Agilent Varian PVG-502S Active Pirani Gauge, for corrosive applications. Pressure Range: 750 Torr to 1x10-3 Torr, KF16 Flange.
Works with Agilent GXS-600 Vacuum Gauge Controller and the Active Gauge Controllers AGC-100, AGD-100. Agilent Varian PN PVG502KF16S.
This is an Agilent Varian PVG-502S series of Pirani gauges providing the
ultimate combination of state-of-art technology and
ruggedness within a compact design, for corrosive applications with a nickle filament. Measurement Range is 3.75x10-4 Torr with setpoints. The PVG-502 series
utilizes the most advanced digital Pirani technology combined
with a stainless steel sensor design to meet the various
needs of the market today.
In a compact, rugged aluminum housing that mounts in any orientation with a logarithmic signal output. Stainless steel sensor cell with metal sealed feedthrough. Easy push button ATM and High Vacuum (HV) adjustment. Can be used with the XGS 600, and Active Gauge Controllers AGC-100 or AGD-100. The PVG-502S has setpoints and is for corrosive applications.
This is the Agilent Varian PVG-502S for corrosive applications, Pirani Gauge ONLY, signal cable and controllers sold separately on this website. For more data scroll down to (AVAILABLE DOWNLOADS:) and download the Spec Sheet and other pertinent information Pdf's. Agilent Varian Part Number PVG502KF16S.
Can be used with the following Agilent Varian Controllers:
- Agilent Varian XGS 600 Gauge Controller
- Agilent Varian Active Gauge Controllers AGC-100, AGD-100
