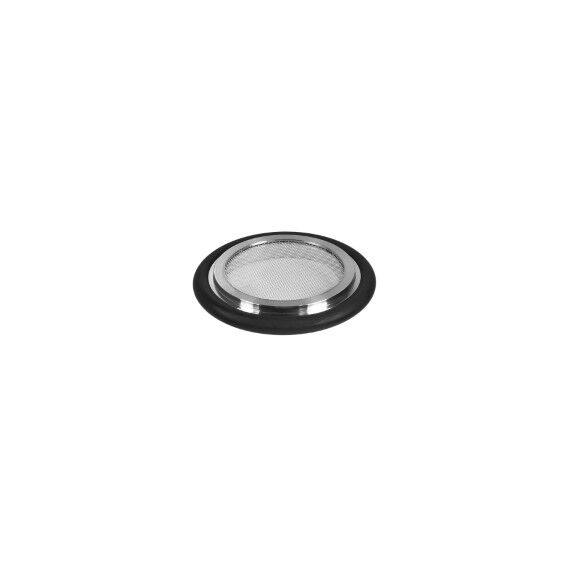

Agilent Varian Turbo Inlet Screen, KF-40, Stainless Steel, Fits Most Compact Turbo Pumps With KF-40 Inlet.
Agilent Varian Part No. 9699309.
These Agilent Varian inlet screens are designed to protect the TwisTorr 74 FS and 84 FS turbo molecular vacuum pumps with KF-40 (NW-40) intake flanges. These turbo intake splitter sheilds help protect the pump from foreign objects, they are made of stainless steel, and have Agilent Varian part number is 969-9309.
Inlet Screen fits most compact turbo pumps with KF-40 inlet flange, including Agilent Varian models:
- TwisTorr 74 FS
- TwisTorr 84 FS
