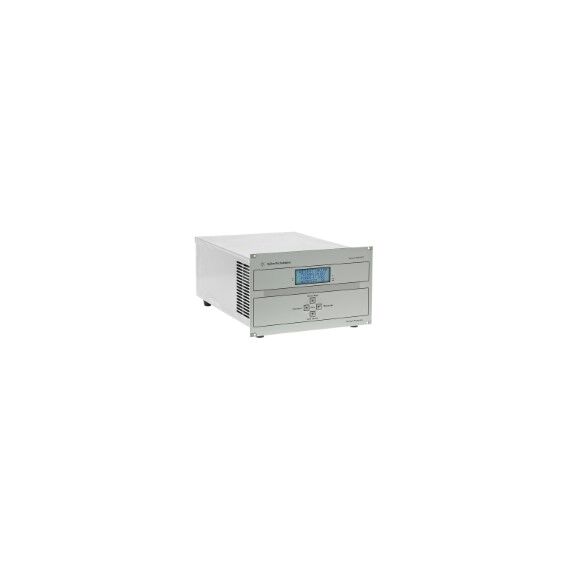

Agilent Varian Turbo-V 1001 Rack-Mount Controller For Turbo-V 1001 Turbo Pumps.
Agilent Varian Part Number PN: X3501-64003.
The Agilent Varian Turbo-V 1001 rack-mount controllers can power the Turbo-V 1001 turbo molecular pumps, its cooling fan, and its vent valve. These Agilent Varian TV1001 rack-mount turbo pump controllers can operate on 100, 120, 220, or 240 volts AC input power. A manually operated input voltage selector is integrated into the rack mount controller power supply input (see photo below). A flat-head screwdriver can be used to pop out the voltage selector box, rotate the voltage selector to the desired input voltage, and re-insert. The Agilent Varian TV1001 rack-mount turbo pump controllers also incorporate auxiliary power connectors (1 Amp max output) for powering the cooling fan and vent valve devices.
These auxiliary connectors are located in the upper right-hand corner on back side of controller (see figure below). Warning, these auxiliary power connectors are not to be used to power the roughing pump, 1 Amp maximum output! The turbo pump to controller cable is integral being built into the Turbo-V 1001 rack-mount controller and is standard 10 foot length. A P1 connector on the back side of the rack-mount controller handles interlock an other logic (see photo below). A P1 interlock-jumped connector is provided with each new Turbo-V 1001 rack-mount controller and this connector must be in place to by-pass the interlock and allow the pump to start after installation.
All optional accessories, pumps, controllers, and different configurations are available from us at Ideal Vacuum. The user’s manual and Agilent Varian Turbo-V 1001 rack-mount controller catalog brochure sections are available for download in PDF format below.
