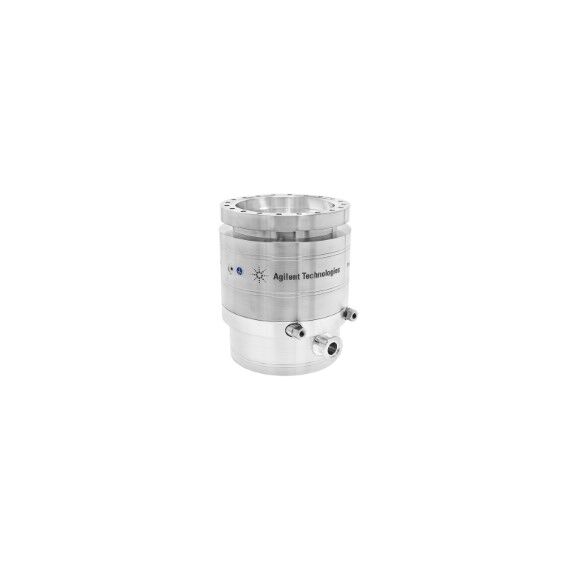

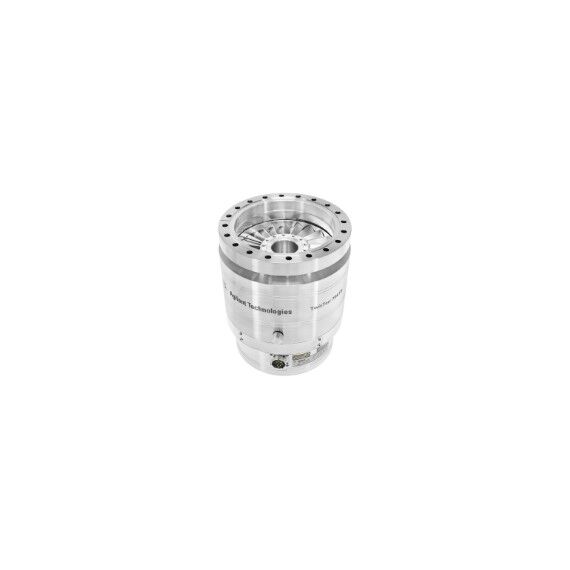

Agilent Varian TwisTorr 704 FS Turbomolecular Vacuum Pump, Conflat CF 8 Inch Inlet Flange, 660 L/S Pumping Speed.
Cooling Kit Required, Agilent Varian Part Number X3511-64017.
These Agilent Varian TwisTorr 704 FS turbomolecular vacuum pumps have a Conflat CF 8 inch inlet flange and have the Agilent Floating Suspension with patented TwisTorr drag stages. These Agilent Varian TwisTorr 704 FS turbomolecular high-vacuum pumps have new and improved performance, including a newly designed labyrinth Twistorr drag stage technology and the Agilent Floating Suspension (AFS) along with optimized thermal design mapping. TwisTorr drag stages create high compression ratios for light gases such as Hydrogen and Helium to deliver high throughput and high tolerance of foreline pressure, thereby permitting the use of smaller and more economical backing pumps. The Agilent Varian TwisTorr 704 FS turbo pumps, with conflat intake, are true ultra-high vacuum (UHV) pumps having an ultimate pressure as low as 1x10-10 Torr when used correctly, for example, the Conflat versions of these pumps allow the intake flange to be baked up to 120 degrees Celsius. The required fan air cooling kit is sold separately.
This technology results in a compact rotor design that is energy-efficient and maintains a low operating temperature. The Agilent Floating Suspension System (AFS) reduces noise and vibration, and ensures optimal bearing operating conditions to extend operating life, minimize system downtime, and assure stable pumping performance over long periods of time. The unique ceramic ball bearings with permanent lubrication eliminate oil and maintenance, and permit operation of the pump in any orientation. These TwisTorr 704 FS turbo pumps require a cooling kit, either fan forced-air or water cooling, along with an outboard remote rack-mount or onboard pump-side-mounted controller, all are sold separately by Ideal Vacuum.
Agilent turbo pumps are designed for optimum performance in real world applications and include integration of pumping systems and multi-flow pumps. Compact sized pumps meet the needs of industries with stringent space requirements. These new Agilent TwisTorr 704 FS turbo pumps require minimal to no maintenance and provide protection from misuse. These pumps go through a variety of quality and reliability tests to include: Long life, Shock, Vibration, Packaging, Thermal, and Noise.
The Agilent Varian TwistTorr 704 FS turbo pump with a Conflat CF 8 inch inlet flange has a pumping speed of 660 l/s of nitrogen, KF-25 foreline flange and ambient operating temperature from 5 °C to +35 °C. These 704 FS pumps have a start up time of 3 minutes, Rotational speed up to 49,500 rpm. Recommend foreline pumps are dry IDP-10, IDP-15 or wet DS-302. The cooling requirements are a minimum of forced air when conditions are 5 to 35 °C ambient air temperature or water cooling with water temperature between 15 to 25 °C at a 100 l/h and water pressure max of 75 psi.
The new Agilent Twistorr 704 FS offers a blend of performance and features that is suited for a wide range of applications. It is a very versatile turbo and can be used in a variety of fields:
Typical Turbo Pump Applications include:
- Mass Spectrometry
- Gas Chromatography Mass Spectrometry (GC/MS)
- Liquid Chromatography Mass Spectrometry (LC/MS)
- Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
- Time-of-Flight Mass Spectrometry (TOF)
Vacuum in Research and Development:
- High Energy Physics
- Fusion Technology
- General UHV Research
- Synchrotron Light Sources Particle Accelerators
Nanotechnology Instruments:
- Electron Microscopy
- Scanning Electron Microscopy (SEM)
- Transmission Electron Microscopy (TEM)
- Focused Ion-beam Systems (FIB)
- Surface Analysis
- Semiconductor Manufacturing
Industrial Vacuum Processing:
- Thin Film Deposition
- Glass coating equipment (architectural and automotive glass, flat panel displays)
- Thin film solar cells production (photo-voltaic)
- Optical data media (CD, DVD, Magneto Optical Discs)
- Magnetic storage media
- Surface treatments
- Optical coating (ophthalmic, precision opto-electronics)
- Roll/Web coating on films or foils
Device Processing:
- TV & Monitor picture tube manufacture
- Evacuation of lamps (motorway lighting, beamers)
- X-Ray tubes & electron devices
General Processes:
- Vacuum Furnaces
- Metallurgy
