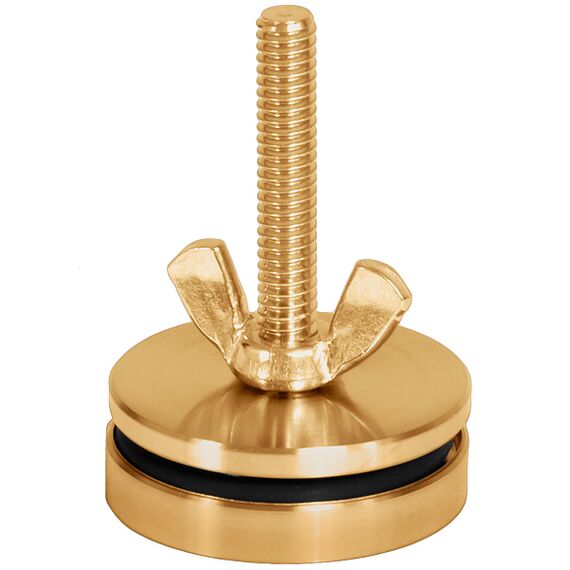

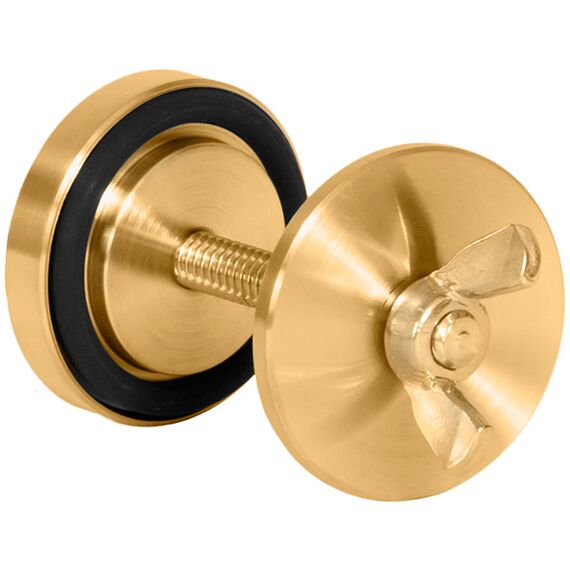

Brass Hole Plug to Fit 1-1/2 inch Diameter Feedthrough Port up to 1-1/4 in. Thick, with Viton O-Ring.
These brass feedthrough hole plugs are designed to seal 1-1/2 inch diameter ports on flat plates or chambers with walls up to 1.25" thick. These brass hole plugs have Viton O-ring seals and are rated for high vacuum in the 10-8 Torr range.
NOTICE: Brass alloys contain Zinc. Zinc will outgas from brass under certain combinations of elevated temperature and high-vacuum. System damage may occur if these conditions are present.

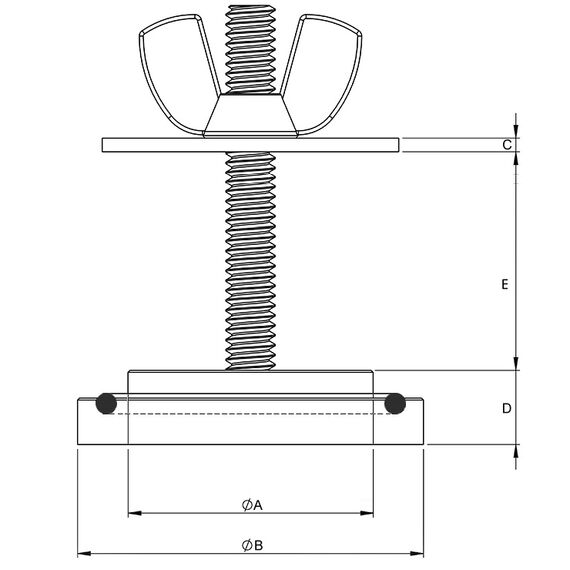

Dimensions:
- A = 1.49"
- B = 2.0"
- C= .07"
- D = 0.375"
- E = 1.25" Max.
