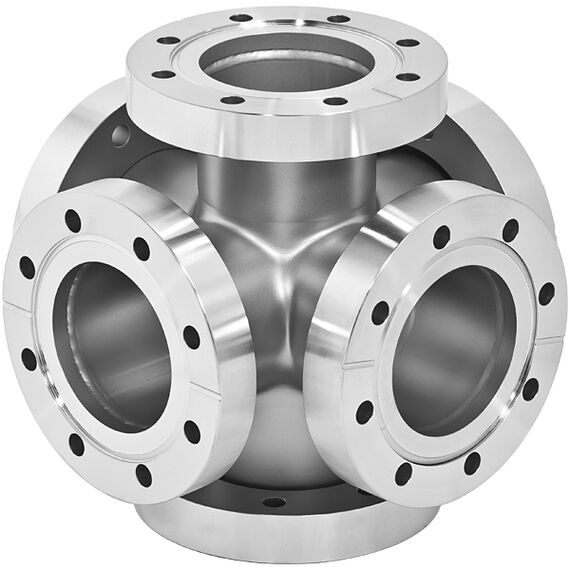

Conflat Flange (CF) 6-Way Cross, CF 4-1/2 inches, Stainless Steel Fittings
These 6-way cross vacuum fittings have three rotatable and three fixed 4-1/2 inch conflat (CF) flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.
Conflat 6-Way Cross, CF 4-1/2 inches, Stainless Steel
CFF Flange Size: 8 bolt holes, CF 4-1/2 inch, CF 4.50 inch
Common Dimensions: A = 3.375", Tube Size OD= 2.50", Flange Size OD = 4.50"
