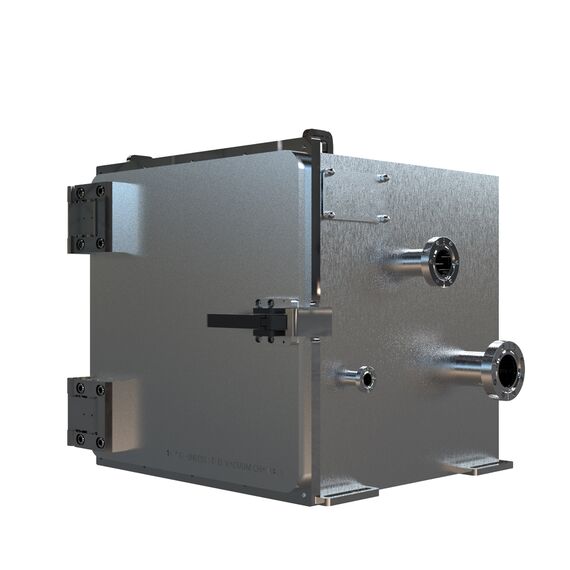

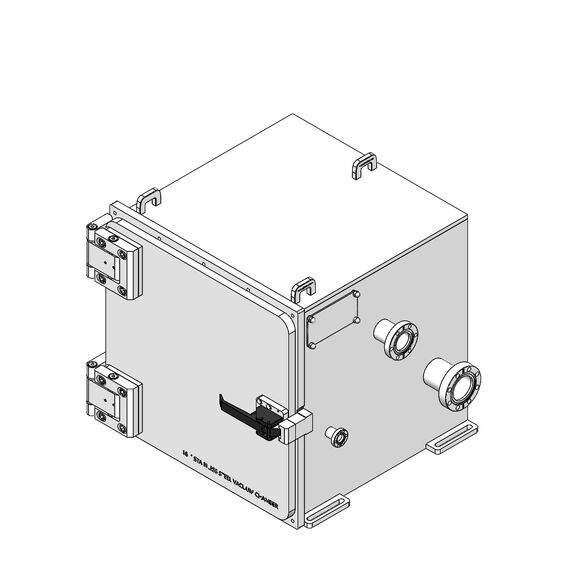

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 16 x 16 x 16 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door or a stainless steel door for chemical resistance, and aluminum or stainless steel door with a built-in viewing port. For custom options please call.
Specifications
- Interior Chamber Size: Approximately 16X16X16 inches (approx. 40.6X40.6X40.6cm)
- Ports Include: 1x CF 6 in, 2x CF 3.375 in, 2x CF 2.75 in, 2x CF 1.33 in
- Chamber Material: 304 Stainless Steel
- Weight: Approximately 160lbs (73Kg) w/o door
- Chamber Volume: Approximately 2.46 cu. ft. (69.6 liters)
- Hinged Front Door: Stainless Steel
- Ultimate Pressure: 1x10-6 Torr (High Vacuum)
- Leak Tested: (Helium) to 1x10-8 atm cc/sec
- Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
- Lead Time: One to Two Weeks (7-14 days)
- Call for additional porting options
- Call for additional coating options
- Call for expanded temperature range
