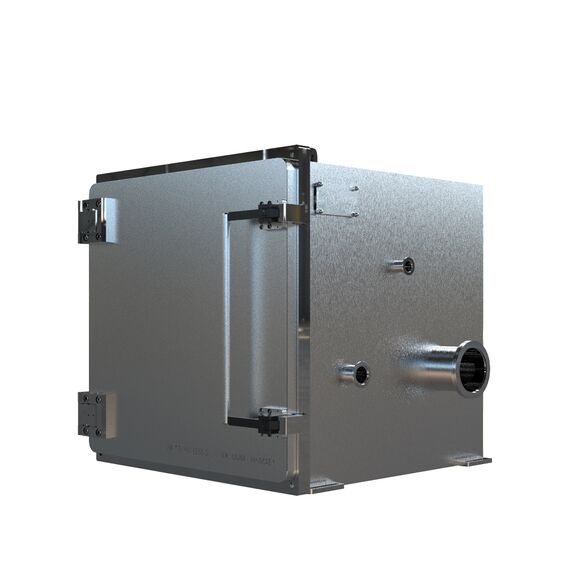

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 24 x 24 x 24 inches, all of these cubic chambers are made with corrosion resistant 304 stainless steel plate . These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door or a stainless steel door for chemical resistance, and aluminum or stainless steel door with choice of a built-in viewing port. For custom options please call.
Specifications
- Interior Chamber Size: Approximately 24X24X24 inches (approx. 61X61X61cm)
- Ports Include: 1x ISO200, 1x ISO100 1x ISO63, 1x KF50, 2x KF40, 2x KF25, 1x KF16
- Chamber Material: 304 Stainless Steel
- Hinged Front Door: Stainless Steel
- Ultimate Pressure: 1x10-6 Torr (High Vacuum)
- Leak Tested: (Helium) to 1x10-8 atm cc/sec
- Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
- Lead Time: One to Two Weeks (7-14 days)
- Call for additional porting options
- Call for additional coating options
- Call for expanded temperature range
