Double-Acting 110 VAC Solenoid Kit for Medium Super-Seal Pneumatic Bellows Valves, CF 4.50" to CF 6.0", ISO-K 63 to ISO-K 100, Weldable Tube 2.5 to 4.0 in. OD.

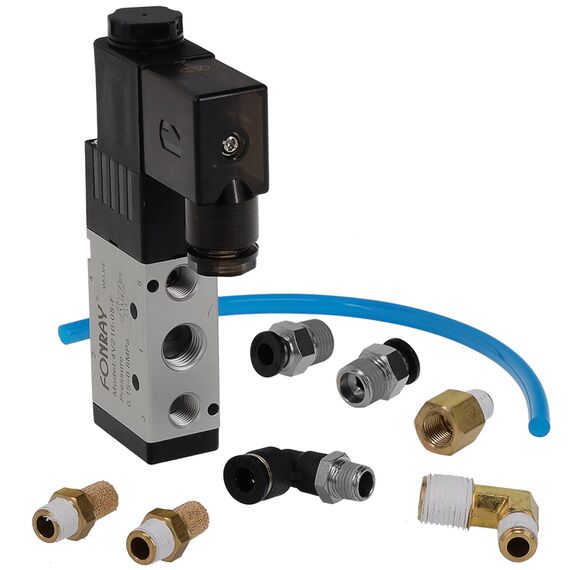

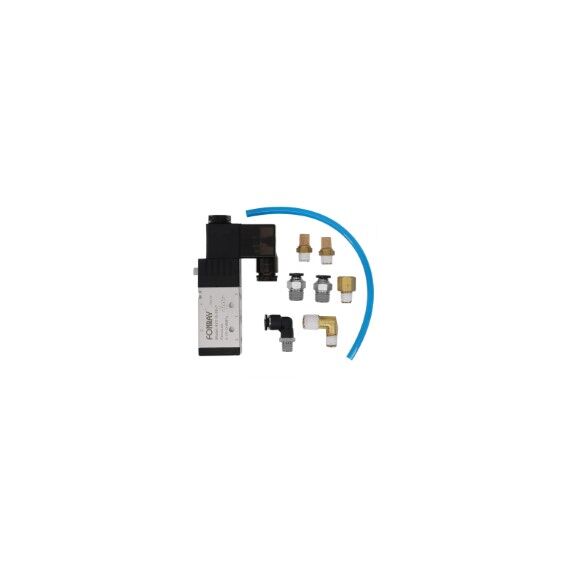

This is a 110 VAC double-acting solenoid kit used on all medium Ideal Vacuum Super-Seal pneumatic bellows valves including 90 degree angle and inline valves. The kit includes the brass and push-to-connect fittings needed to attach the solenoid to any medium Super-Seal valve and prep it for connection to an air source. This solenoid requires a 110 VAC power source capable of supplying a current of 70mA.
This double-acting solenoid kit is used on these medium Super-Seal pneumatic bellows valves:
- CF 4.50", CF 4.625", and CF 6.0"
- ISO-K 63, ISO-K 80, and ISO-K 100
- Weldable Tube 2.5", 3.0", and 4.0" OD tube
Medium-sized Super-Seal valves require air to both open and to close. They do not have a spring return and therefore do not automatically close. Low volume, dry, compressed air in the range of 60-to-80 psi is needed. When energized, the solenoid directs air flow through the solenoid's manifold into the valve's bonnet, opening the valve. When the solenoid is de-energized, air flow is redirected to the top of the valve head, closing the valve. Because they do not have automatic spring closure, medium Super-Seal valves cannot provide failure protection to preserve chamber vacuum in case of loss of power or air supply.
The Super-Seal family of valves includes weldable tube, KF, ISO-K, and Conflat (CF) flange options, from 3/4" OD tube (KF-16), to 10" OD tube (ISO-K 250), and many are available in right angle (90°) and in-line versions.
Available Super-Seal valve accessories sold separately include:
- 12 VDC, 24 VDC, 110 VAC, and 220 VAC Solenoids
- Mechanical reed switch, NPN, and PNP position indicator sensors, used to provide confirmation of the valve's state (whether it is open or closed) and to switch or trigger auxiliary devices.
Super-Seal valves are a great value and are extremely reliable, making them useful for applications such as semiconductor manufacturing, plasma physics research, and nuclear accelerators. They are a primary component in vacuum process automation and have a mean time to failure rate (MTTF) of more than one million cycles.

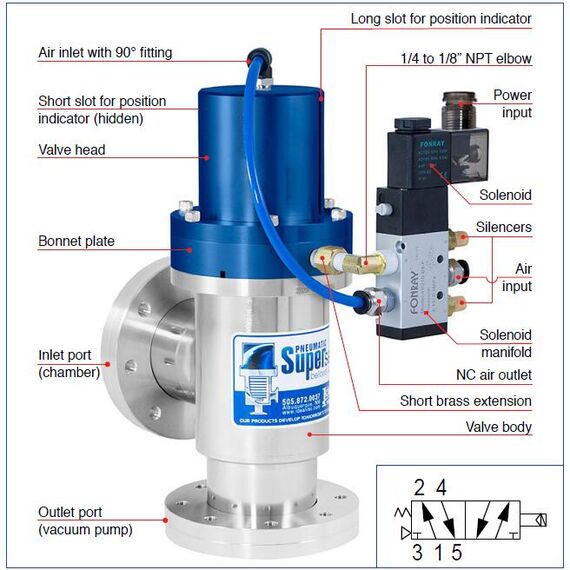

Please see the supplied images for solenoid plumbing and view the brochure for basic solenoid wiring. Download the User Manual for step-by-step instructions for solenoid wiring and for complete information about the Ideal Vacuum Super-Seal family of pneumatic bellows valves.
