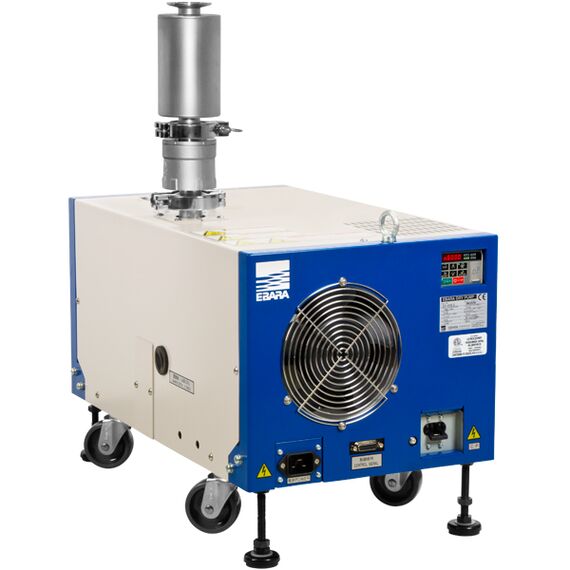

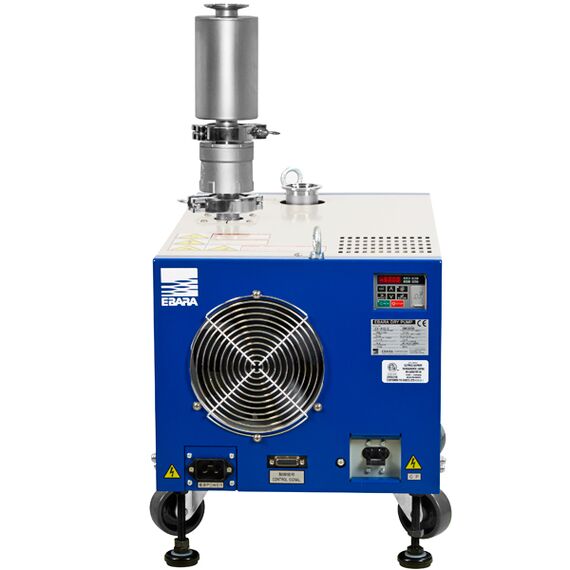

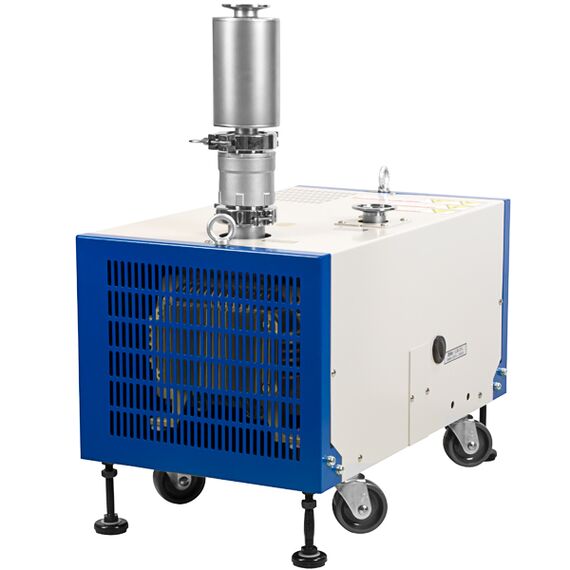

Ebara EV-SA30-2 Air Cooled Dry Vacuum Pump For Clean Applications,1-Phase 200-240 VAC, 120 cfm 3,300 l/min., PN: 202653

These Ebara EV-SA 30 series dry rotary lobe vacuum pumps are air-cooled and are designed for light duty dry vacuum applications. The EV-SA 30 pumps dry pumps have a large 120 cfm (3300 L/Min) pumping speed, have KF-40 inlet and exhaust ports, operate very quiet at 56 dB (A) operating noise level, and have an ultimate pressure without gas ballast of is 22.5 mTorr (37.5 mTorr with gas ballast on). Save money with low operating power consumption, as low as 1.1 kW at ultimate pressure. This unit has Ebara reference number EV-SA30-2 which includes standard accessories, such as, the vertical exhaust orientation, external silencer & check valve, operates on 1-phase 200-240 VAC, and port for optional gas ballast, having Ebara model EV-SA30-2 and part number 202653.

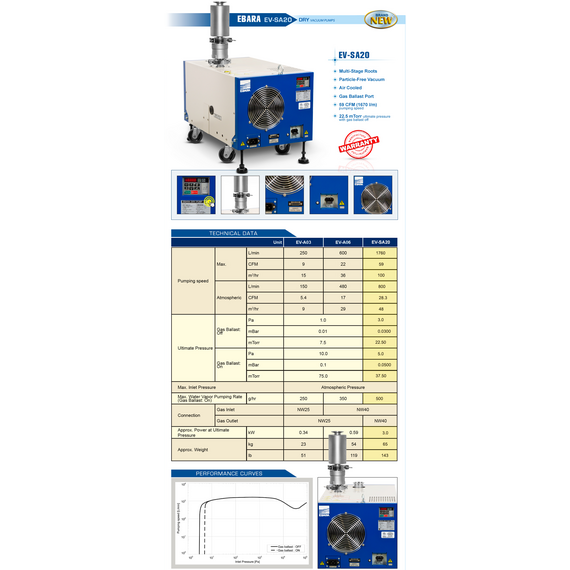

The Ebara EV-SA30 series dry vacuum pumps are simple to use, simply plug them in and turn them on (it's that simple). They can be ordered to operate on 1-phase 208 VAC or 3-phase 208 VAC, the current part number being sold here, 202653 is for the 1-phase 208 VAC pump. The Ebara EV-SA pumps can operate continuously at atmospheric pressure without over heating or locking up. The Ebara EV-SA vacuum pumps are compact and are quite during operation. They include rolling casters for easy moving about the facility. Please see the additional information in the user's manual and products brochure downloads below.

Benefits and Features of the Ebara EV-SA series dry rotary lobe pumps.
• Lowest energy consumption
• No maintenance
• Low operation costs
• Wide vacuum range
• High profitability
• Minimal footprint

Applications
• Load Lock
• Analytical Instruments (LCMS Liquid Chromatography–Mass Spectrometry, GCMS Gas Chromatography Mass Spectrometry)
• Metrology - SEM (Scanning Electron Microscopes), TEM (Transmission Electron Microscopy)
• PVD (Physical Vapor Deposition) Sputter Systems
• Drying Vacuum Ovens
• Oxygen Plasma Systems
• Wet Pump Replacement
• Scroll Pump Replacement
• Clean Application
• Glove Boxes
• Lyophilization (Freeze Drying)
• Sterilizers (Vaporized Hydrogen Peroxide Sterilizer medical devices Vacuum Steam Sterilization for Hospital Applications)
• Leak Detectors
• Beam Line & Synchrotrons
• High Energy Physics (Research & Development Laboratories – R&D)
• Space Simulation Chambers
• Turbo Pump Backing
• Flexible LED Video Display Manufacturing
• Absolutely Clean & Dry Vacuum for Medical Devices & PCB Board Manufacturing
• Medium Duty, compete with PFPE Rotary Vane Pumps, Pumping Oxygen Applications. Plasma O2 CF4
