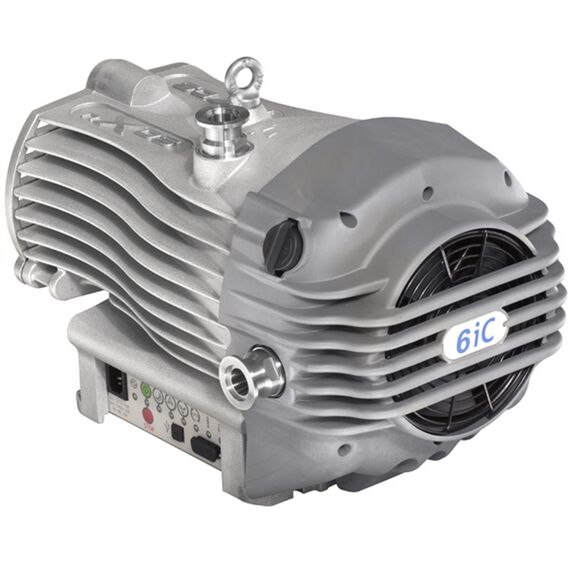

Edwards nXDS6iC Corrosive Model Oil-Free Dry Scroll Vacuum Pump. PN: A73502983

This new nXDS6iC dry scroll pump range from Edwards has exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features. The Edwards nXDS6iC is the best performing pump in its class. The nXDS6iC is up to 20 times quieter than other pumps. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies.

The Edwards nXDS-6iC, nXDS 6iC, pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDS6i is the next generation in completely oil free, dry scroll pumps and replaces the XDS5. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.

It is suitable for use on vapor handling processes, and may be used for some pumping applications involving corrosive substances. The nXDS-C variants have Chemraz® internal valves and stainless steel fittings for extra protection from the pumped media.

Now with an integral pump controller managing the supply of current to a three-phase electric motor in accordance with operating conditions. The controller monitors power and temperature, and will protect the pump in the event of operation under sustained high load or under fault conditions. The controller provides the user interface. The pump may be operated in Manual mode, using the buttons on the interface panel, with a unique feature to control the speed of the pump in Standby Mode to 70% of full speed or with other buttons to increase or decrease pump speed to save wear and tear on tip seals and bearing service life; or a Remote Mode, via serial communications; or a digital and analogue process control (parallel) mode, via the 15-way D-type logic interface connector.

To pump high vapor loads, gas ballast can be delivered into the pump to prevent condensation of the vapor carried by the pumped gases. The logic interface has been designed to support both serial control, parallel control and monitoring, operating through one connector. For serial control either RS232 or RS485 can be selected.
