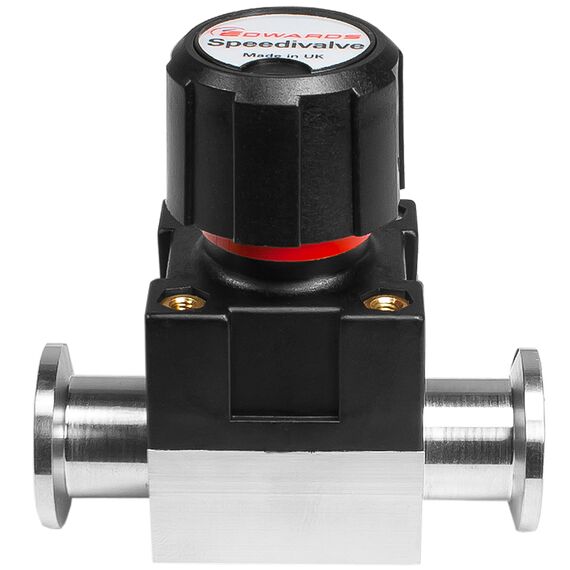

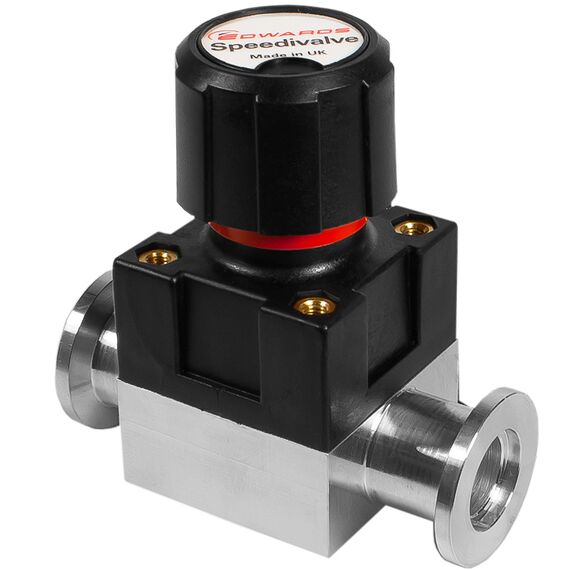

Edwards SP16K Speedivalve, KF16, manual operation, Nitrile diaphragm, aluminum alloy, C33205000.
These NEW Edwards SP16K Seedivalve come with Nitrile diaphragm and the valve bodies are made of aluminum alloy. The complete valve is leak tight to better than 10-6 mbar l s-1 / 7.5 x 10-7 Torr l s-1 at 1 bar differential. The mechanism is isolated from the system by the diaphragm resulting in an extremely rugged and "dirty" system tolerant valve. Diaphragm is Nitrile fluoroelastomer. Valves can be panel mounted. These valves have red indicators to show the "open" position.
Body: Aluminum alloy to BS1490
Handwheel and bonnet: Glass reinforced plastics
Diaphragm: Nitrile fluoroelastomer
Maximum leak rate across body: 10-6 mbar l s-1 / 7.5 x 10-7 Torr l s-1
Maximum leak rate coupling: 10-7 mbar l s-1 / 7.5 x 10-8 Torr l s-1
Molecular conductance: 1.7 l s-1
Pressure Rating using Co-Seal: 9 bar / 131 psi
Panel thickness: 3mm or .117 inch maximum
Weight: (g/oz) 240 / 8.4
Baking Temp: 60 °C
Suitable for panel mounting. These Speedivalves are primarily for vacuum processes. They are brand new.
Edwards SP16K Speedivalve, KF16, manual operation, Nitrile diaphragm, aluminum alloy, P/N C33205000.
Flange Size: KF16, NW16

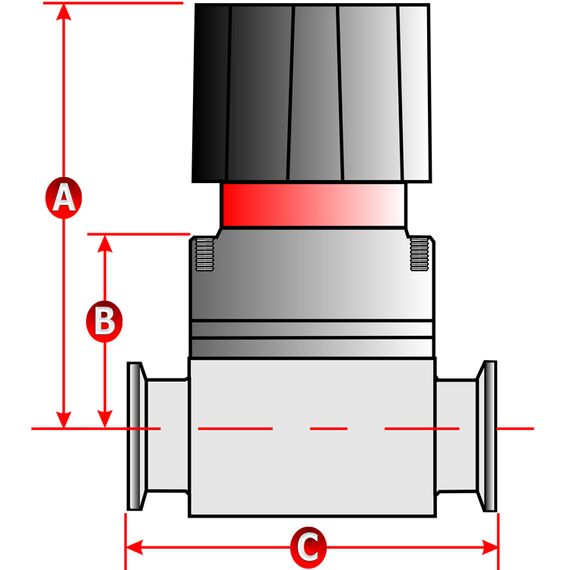

Common Dimensions: A = (OPEN)2.75"(71mm), B= 1.3125"(34mm), C = 3.125"(80mm)
