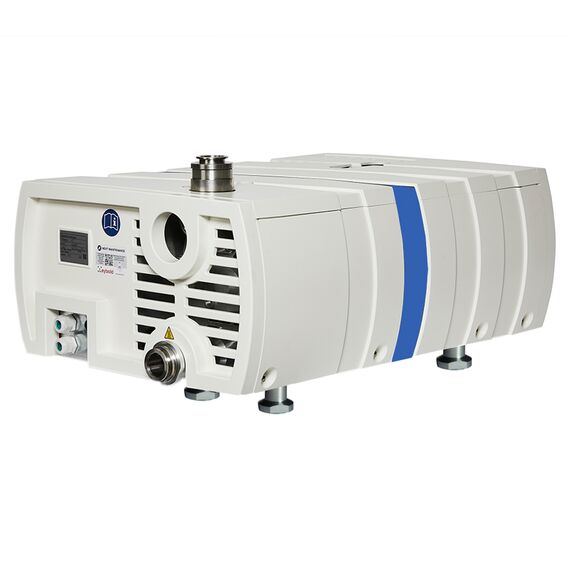

Leybold Dry Screw Pump Varodry Heavy Duty VD 200 HD/O2, 230/460V 3ph. 60 Hz. WITH Purge Gas Module P/N 111200V36

P1011742
$28,90400
In stock
Price in points: 28904 points
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price

The VARODRY HEAVY DUTY HD/O2 is specifically designed with a stainless steel exhaust and built-in purge module. Together, these allow the pump to handle some of the harshest applications in which exhaust gases are usually piped away. The combination of the above HD features, the completely oil-free VARODRY concept and the extra precautions taken during production to ensure internally hydrocarbon-free surfaces result in a VARODRY HD/O2 capable of handling up to 100% oxygen. These capabilities have been accredited by a notified body, based on intensive and rigorous testing.

These VARODRY are fully air-cooled and oil free. That results in the fact that the VARODRY only consumes electricity. You will never experience any extra costs for cooling water supply or oil/oil filter exchange and disposal. Additionally, its low power consumption offers you significant energy savings. The Total Cost of Ownership savings offered by VARODRY are a market benchmark for a wide range of demanding applications, expecially where standard pumps require a lot of maintenance. And copared to oil sealed rotary vane pumps the VARODRY will save you money in operational costs.

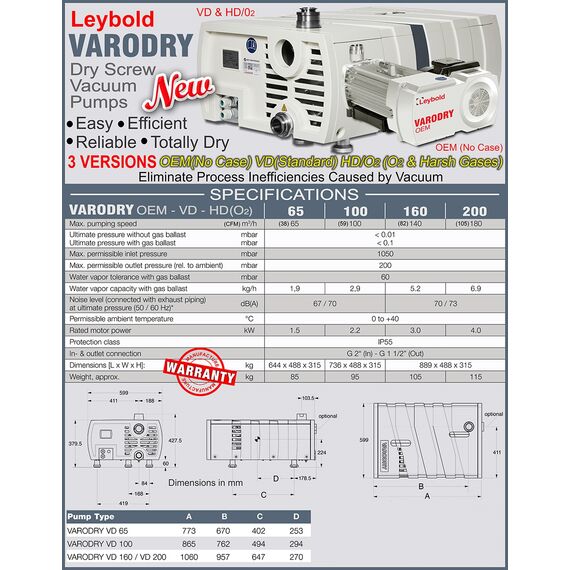

The VARODRY provides a competitive pumping speed over the complete pressure range and a low end-pressure of < 0.01 mbar. It can operate continuously at any inlet pressure. The effective pumping speed generated per consumed power is a market benchmark for industrial dry pumps.

User Maintenance:
With only two wearing parts (belt and bearings), only minimal efforts are required to keep your pump running at peak performance. At the same moment, the uptime of your facility will be strongly improved.

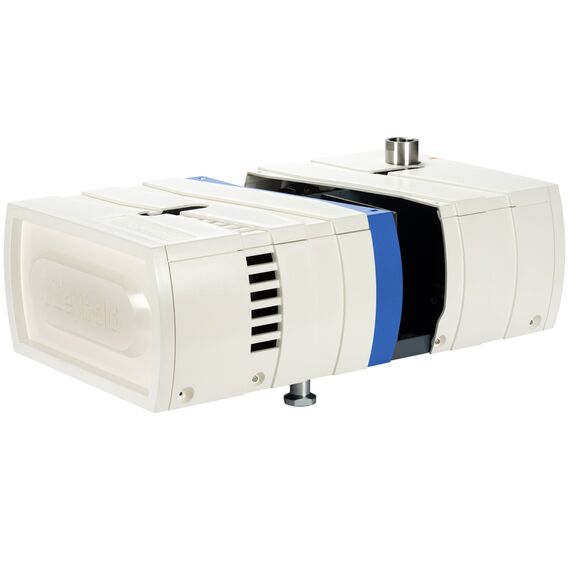

The belt can easily be exchanged by you, in less than 30 minutes. The partly removable enclosure makes this really convenient. The belt exchange interval depends on the individual application, typically it is one year. Belt exchange kits and maintenance tools are available for you. Furthermore, we offer you solutions for multiple pump control via ECOntrol 6 V/16 V or ELEC CAB. Standardized combinations with RUVAC roots blowers are also available.

Repeated and Fast Cycling:
The VARODRY offers a very quick pump down. The pump tolerates atmospheric pressure shocks and repeated evacuation cycles.

Dust / Particle Handling:
The rotor screw principle and anodization offers the best performance to handle fine, dry dust particles. In the case of large dust amounts, a wide filter portfolio is available.

Vapor Handling:
Due to its optimized temperature profile and the built-in gas-ballast, the VARODRY offers a high vapor tolerance, avoiding internal condensation.

Reactive Gas Handling:
Often vapors (e.g. hydrocarbons) tend to react inside hot dry pumps and built-up internal coatings which can cause pump seizing. The internal temperature profile virtually eliminates this risk.

Liquid Handling:
The VARODRY can handle droplets or even liquid slugs as the liquids can flow freely out of the pump.

PDF1 (Leybold_VaroDry_VD65-VD200_Operating_Instruction.pdf, 5,799 Kb) [Download]

PDF2 (Leybold_VARODRY_Soft_Starter_Operating_Instructions.pdf, 290 Kb) [Download]

PDF3 (Leybold_VaroDry_VD65-VD200_HD-O2_Heavy_Duty_Brochure.pdf, 700 Kb) [Download]

PDF4 (Leybold_VaroDry_VD65-VD200_HD-O2_SUPPLEMENT_to_OP_INSTRUCTION.pdf, 154 Kb) [Download]

PDF5 (Leybold_Varodry_VD65,_VD100,_VD160,_VD200_Dry_Screw_Vacuum_Pumps_Brochure.pdf, 1,963 Kb) [Download]
