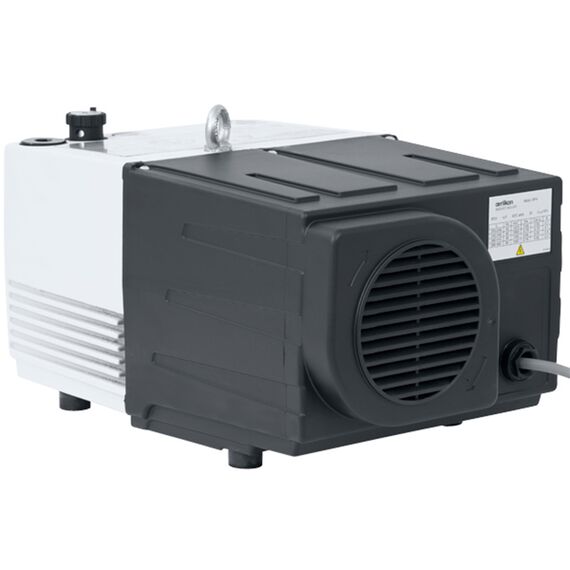

Leybold Sogevac SV16D Single Stage Rotary Vane Vacuum Pump, 3-Phase World Motor PN: 960181V

These NEW Leybold Sogevac SV16D pumps are single stage oil sealed rotary vane vacuum pumps, 3-Phase 200-240/380-460 VAC, 60Hz. The NEW Leybold Sogevac SV16D SV 16D single stage oil sealed vacuum pump is designed for continuous operation over the working pressure range from atmosphere to < 1.1 Torr (1.5 mbar). They have a pumping speed of 11 cfm and an intake/exhaust of 1/2 inch G (inside thread). They have a water vapor tolerance of 15 Torr. The Leybold Sogevac SV16D SV 16D, consists of the pump body oil casing and drive cooling system. This pump has built in exhaust filters, gas ballast valve, and an automatic oil return system; offers low noise, is compact, has low vibration, and is easy to operate. This new Leybold Sogevac SV16D SV 16D is also easy to perform maintenance, service and repair.

The Sogevac D series offers a few more features to customers than the previous versions:

• Optimized pump temperature owing to a new air cooling concept
• Additional water cooling (optional) allowing deployment in rough applications and extending oil lifetime
• Longer oil service life due to increased oil volume within the pump (up to 4 times the oil capacity compared to similar pumps of its size)
• World motors as standard equipment

Oil sealed rotary vane vacuum pumps are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. They may be used to generate a rough and medium vacuum or as the backing pump in pump combinations with Roots pumps or high vacuum pumps. By design, rotary vane pumps run quietly and do not produce much noise.

Sogevac pumps are oil sealed rotary vane pumps. Oil injected into the pump chamber for sealing, lubrication and cooling of the pump is recycled from the pump’s oil reservoir and filtered before it is injected. The lubricant system is rated for continuous operation at high intake pressures so that the pumps may be used in a versatile manner in most rough vacuum applications (accessories are required for some pumps).

These Leybold Sogevac SV16D SV 16D single stage vacuum pumps are normally used for integration into existing machines (due to their compact design). However they are also used in a variety of industries such as:

• Packaging in the food preparation industry
• Car Industry
• Degassing
• Metallurgy
• Laser and Medical technologies
• Space simulation
• Thermal forming of plastics
• Vacuum drying and impregnation
• Leak testing
• Vacuum stirring and mixing

Maintenance service, repair, oils and accessories for these NEW Leybold Sogevac SV16D SV 16D single stage rotary vane vacuum pumps, Leybold part number: 960181V are available on this website. Not only do we service, repair and rebuild this Sogevac vacuum pump but we perform maintenance repair on other models as well. For more specifications and information see below in our .pdf section to download available manuals and brochures.
