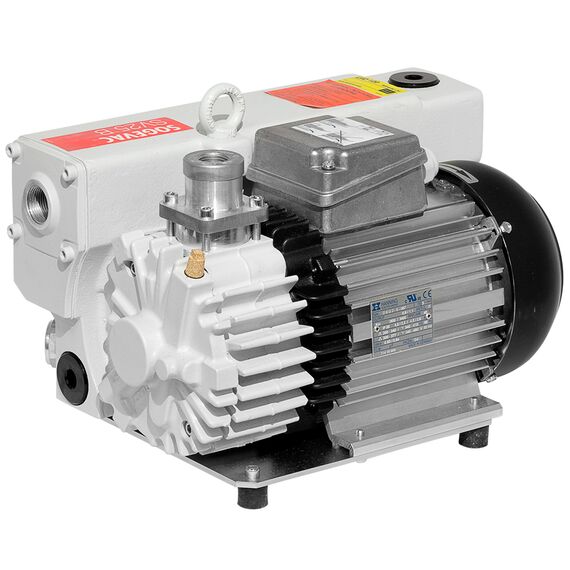

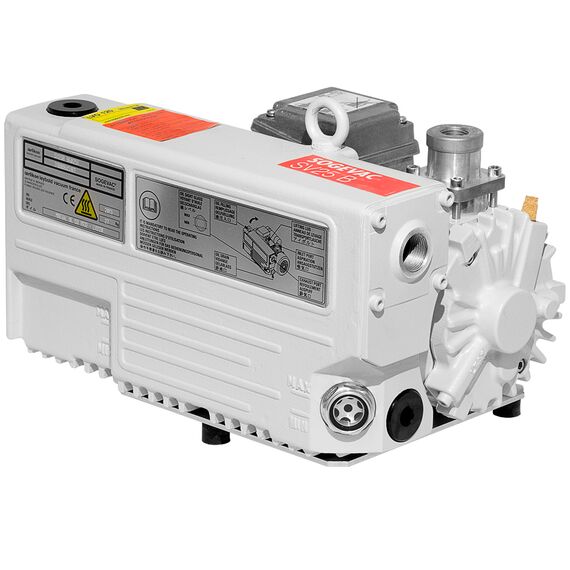

Leybold Sogevac SV25B Single Stage Rotary Vane Vacuum Pump, Worldwide Motor, PN: 960251

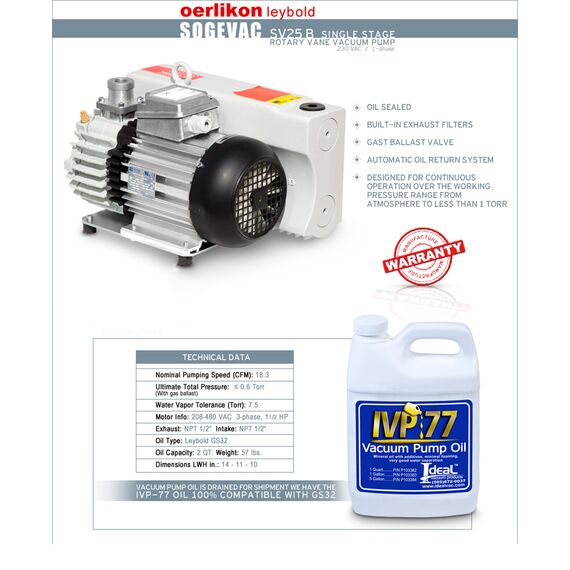

These NEW Leybold Sogevac SV25B pumps are single stage oil sealed rotary vane vacuum pumps, 3-Phase 200‐277/346‐480 VAC, 60Hz. The NEW Leybold Sogevac SV25B SV 25B single stage oil sealed vacuum pump is designed for continuous operation over the working pressure range from atmosphere to < 1.1 Torr (1.5 mbar). They have a pumping speed of 18.3 cfm, an intake port of 3/4 inch G + 1/2 inch G (inside thread) exhaust port of 1/2 inch G (inside thread) and come standard with a worldwide motor. They have a water vapor capacity of 100 g/hr and water vapor tolerance of 7.5 Torr. The Leybold Sogevac SV25B SV 25B, consists of the pump body oil casing and drive cooling system. This pump has built in exhaust filters, gas ballast valve, and an automatic oil return system; offers low noise, is compact, has low vibration, and is easy to operate. This new Leybold Sogevac SV25B SV 25B is also easy to perform maintenance, service and repair.

Oil sealed rotary vane vacuum pumps are being used in all areas of vacuum engineering. They are equally suited for both industrial production and research applications. They may be used to generate a rough and medium vacuum or as the backing pump in pump combinations with Roots pumps or high vacuum pumps. By design, rotary vane pumps run quietly and do not produce much noise.

Sogevac pumps are oil sealed rotary vane pumps. Oil injected into the pump chamber for sealing, lubrication and cooling of the pump is recycled from the pump’s oil reservoir and filtered before it is injected. The lubricant system is rated for continuous operation at high intake pressures so that the pumps may be used in a versatile manner in most rough vacuum applications (accessories are required for some pumps).

These Leybold Sogevac SV25B SV 25B single stage vacuum pumps are normally used for integration into existing machines (due to their compact design). However they are also used in a variety of industries such as:

• Packaging in the food preparation industry
• Car Industry
• Degassing
• Metallurgy
• Laser and Medical technologies
• Space simulation
• Thermal forming of plastics
• Vacuum drying and impregnation
• Leak testing
• Vacuum stirring and mixing

Maintenance service, repair, oils and accessories for these NEW Leybold Sogevac SV25B SV 25B single stage rotary vane vacuum pumps, Leybold part number: 960251 are available on this website. Not only do we service, repair and rebuild this Sogevac vacuum pump but we perform maintenance repair on other models as well. For more specifications and information see below in our .pdf section to download available manuals and brochures.
