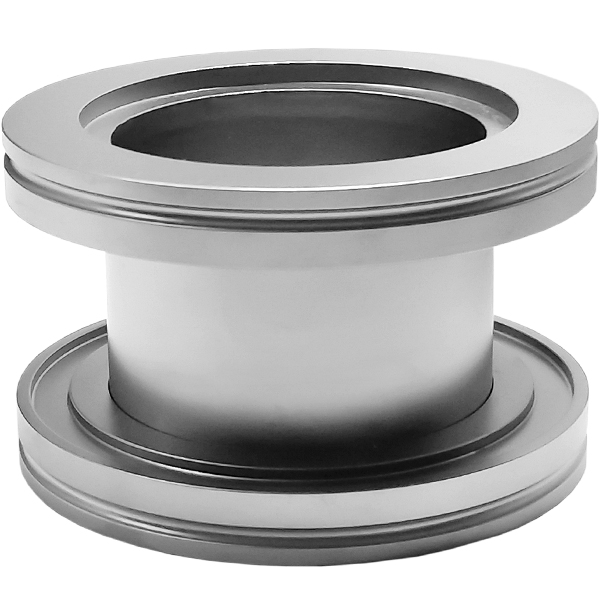

Nipple Full, 2.3 inch height, ISO63 NW-63 Vacuum Fittings, ISO-LF Large Flange Size, Stainless Steel

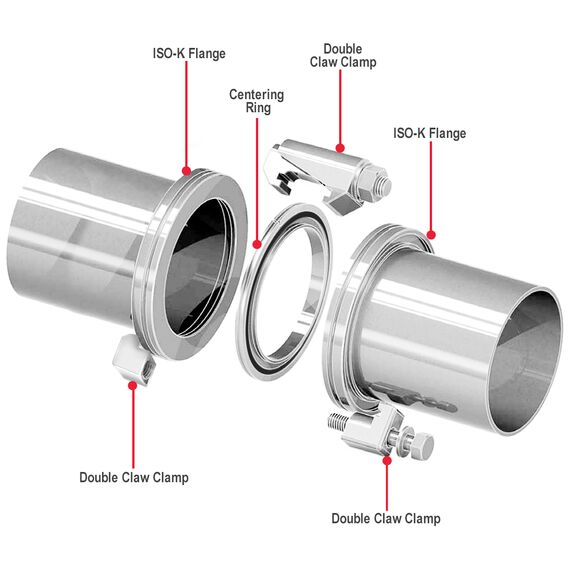

These full nipples follow International Standards Organization (ISO) standards and have a flange size of ISO63, NW-63. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.
Nipple Full, 2.3 inch height, NW-63 ISO-63 Vacuum Fittings, ISO-LF Large Flange Size NW-63, Stainless Steel
ISO-LF Flange Size: NW-63
Common Dimensions:

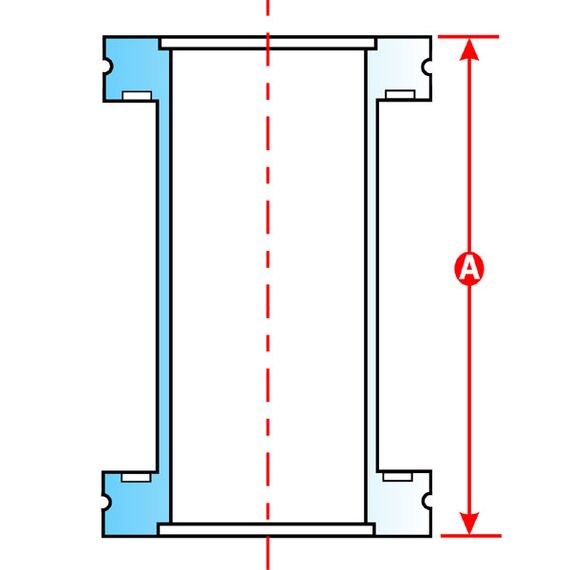

A = 2.3 in. (58mm)
2.5 inch tube size
