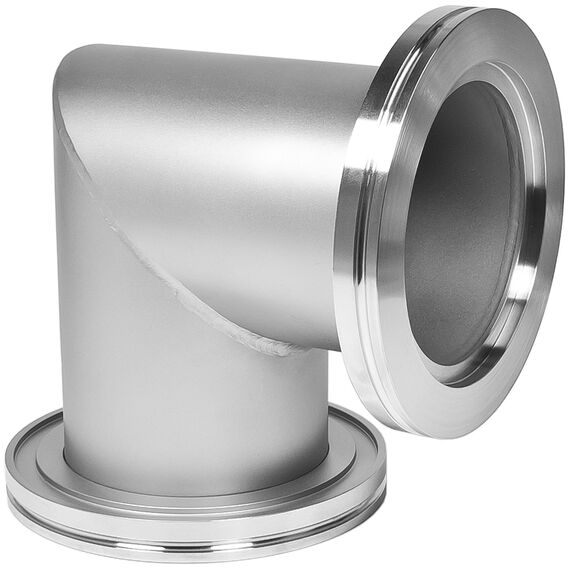

Elbow Mitered 90 Degrees, Short, NW-80 Vacuum Fittings, ISO-LF Large Flange NW-80, Stainless Steel
PN: A2506303E0000801
ISO (International Standards Organization) flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see images - click to enlarge). The centering ring contains a Viton® rubber/elastomeric o-ring. ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant 304 stainless steel.

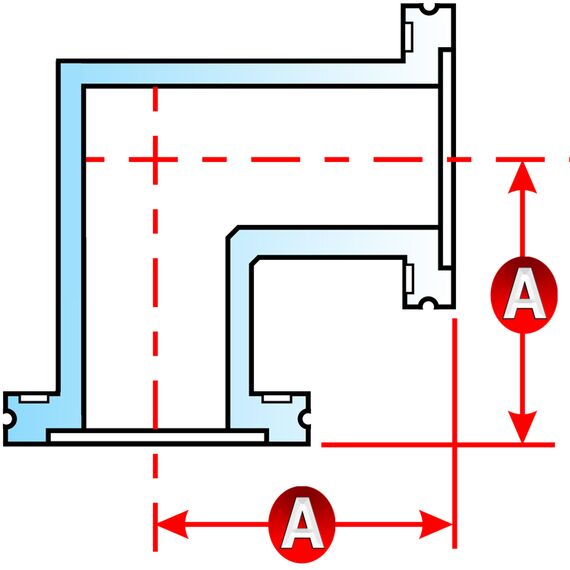

Specifications & Dimensions:
Flange Size: ISO LF NW-80
A: 3.5" (88.90mm)
