APR 265 Active Piezo Transmitter, 5000 mBar (3750 Torr), G ¼" (BSPP), Stainless Steel, ActiveLine
PN: P 5215 126TF

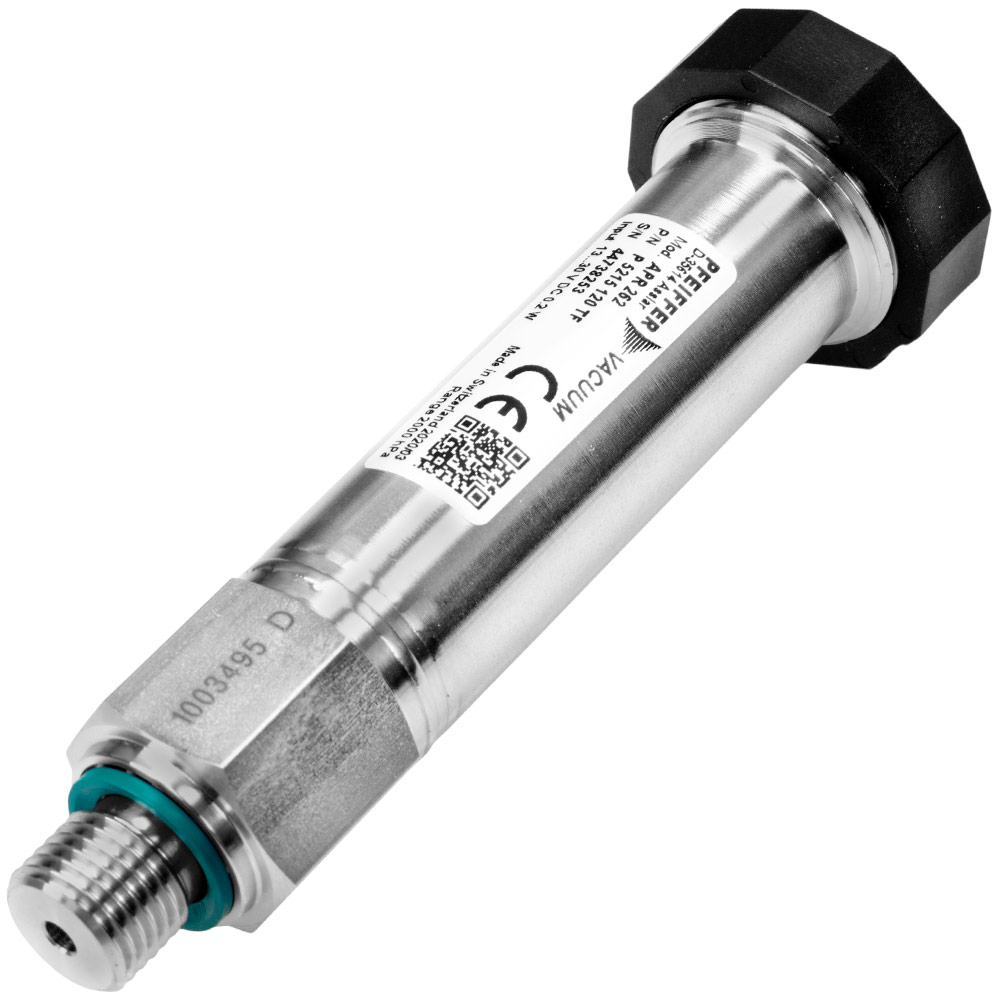

This Pfeiffer APR 265, part of the ActiveLine of pressure gauges, employs an active piezo transmitter and measures in the range from 0.5 to 5000 mBar (up to 3750 Torr). The APR265 gauge has a model G 1/4" connector (straight thread BSPP = British Standard Pipe Parallel).
Pressure measurements with this Pfeiffer active piezo gauge are gas type independent. The maximum pressure applies to inert gases at temperature less than Than 55°C. Bakeout temperature is 80°C.
This gauge is very compact at less than 5" long and 1.3" wide. Its stainless steel body and connector is corrosion resistant.

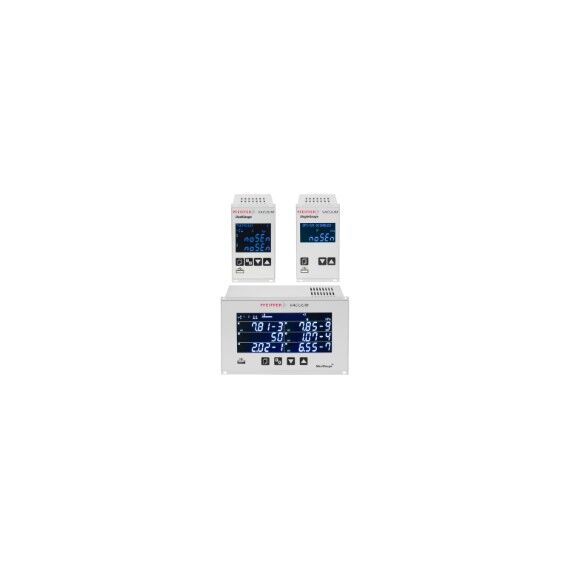

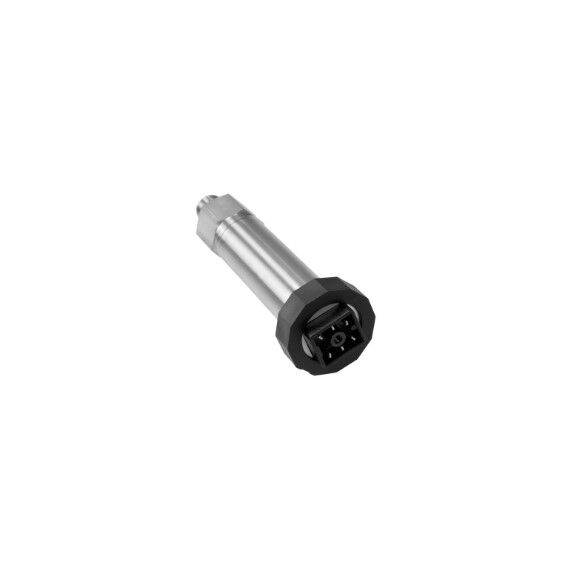

This gauge has the standard Pfeiffer rectangular Hirschmann GO 6 electrical connector, and can be operated in connection with a Pfeiffer ActiveLine gauge controller such as the TPG 361, TPG 362 and TPG 366. Pfeiffer ActiveLine control units and connection cables, from 3 to 10 meters, are available separately.
For more information and specifications, please see the available downloads.
