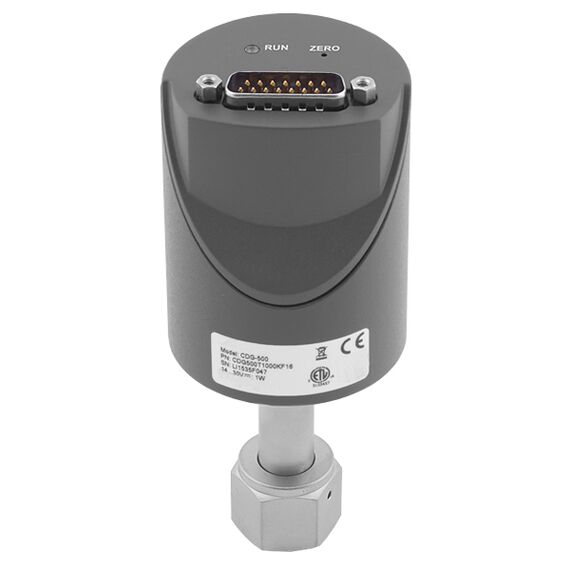

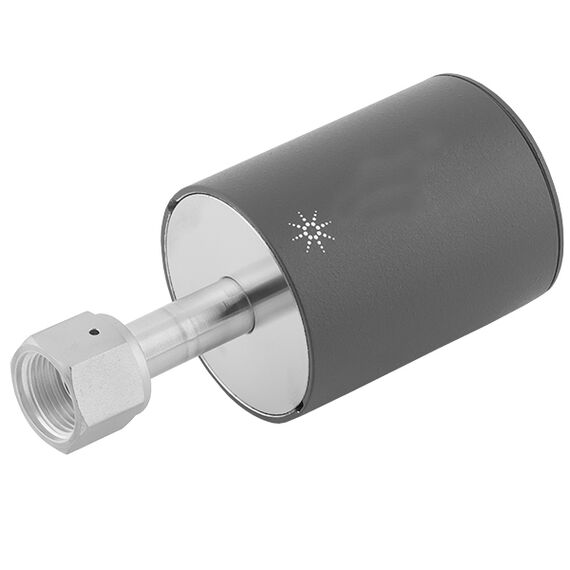

Varian CDG-500 Capacitance Diaphragm Manometer Gauge, No set points. Pressure Range: 1000 Torr, KF16 Flange.
Works with Agilent XGS-600 Vacuum Gauge Controller and the Active Gauge Controllers AGC-100, AGD-100. Agilent Varian PN CDG500T1000KF16.
The Capacitance Diaphragm Gauge CDG-500 is intended for absolute pressure measurement of gases in its respective pressure range. This unit measures 1000 Torr.
The gauge can be operated in connection with an Agilent AGC-100, AGD-100 or XGS 600 Vacuum Gauge Controller, an Agilent Turbo AG Rack Controller, or with another appropriate measuring unit.
The Capacitance Diaphragm Gauge consists of a capacitive sensor element made of a corrosion resistant ultra pure alumina ceramic
diaphragm providing exceptional signal stability, fast recovery
from atmosphere, short warm-up times and unparalleled
robustness. The electronics converts the capacitance into a DC voltage output signal.
The output signal is linear to the measured pressure and independent of the gas type. This unit provides a high level of accuracy in the high pressure range of 1000 Torr.
This is the Agilent Varian CDG-500 Capacitance Diaphragm Gauge Only, (no set points), signal cable and controller sold separately on this website. For more data scroll down to (AVAILABLE DOWNLOADS:) and download the Spec Sheet and other pertinent information Pdf's. Agilent Varian Part Number CDG500T1000KF16.
Can be used with the following Agilent Varian Controllers:
- Agilent Varian XGS 600 Gauge Controller
